3-D models¶

neural_flow treats [B, C, X, Y, Z] volumes as first-class objects. This page covers what is specific to volumetric networks: axis order, voxel spacing, transformer U-Nets such as UNETR, Swin UNETR and UNesT, whole-volume (sliding-window) inference, the optional flat 2-D view, and movies of 3-D inference.

UNETR on a synthetic head

UNETR (MONAI) trained on synthetic heads. The 12-block transformer is shown as its four tapped blocks on a 4³ token grid, the decoder climbs back to 64³, and the output card shows the whole head fused from every 64³ window (the traced window is outlined).

Axis order¶

`volume_axes`	tensor layout	used by
`"xyz"` (default)	`[B, C, X, Y, Z]`, x = left→right, y = posterior→anterior, z = inferior→superior	nibabel, MONAI `LoadImage`
`"zyx"`	`[B, C, Z, Y, X]`, the same axes reversed	nnU-Net, SimpleITK (set automatically for `nnunet:` models)
`"dhw"`	`[B, C, D, H, W]`, a stack of axial slices	torch / DICOM slice stacks

The axis order only affects how volumes are drawn (which way is "up"), never the model.

Voxel spacing¶

Scans are rarely isotropic. With the spacing, every volume is drawn with its real proportions, and the input and all of its feature maps cover the same physical field of view:

visualize_model(model, x, voxel_spacing=(1.0, 1.0, 3.0))       # mm per voxel, tensor axis order

neural-flow render my_unet.py:UNet --weights w.pt -i scan.nii.gz     # spacing read from the NIfTI header
neural-flow render my_unet.py:UNet --weights w.pt -i scan.nii.gz --spacing 0.8 0.8 5
neural-flow render my_unet.py:UNet --weights w.pt -i scan.nii.gz --no-spacing   # cubes, as before

thick-slice volume drawn to scale

The 3-D U-Net on a thick-slice (1 × 1 × 3 mm) volume. Without the spacing the head would be drawn squashed to a third of its height.

Transformer U-Nets (UNETR, Swin UNETR, UNesT, …)¶

These networks run a transformer backbone over the image, tap its hidden states at several depths, and feed each tap into the decoder level with the matching resolution. neural_flow recognises the pattern from the runtime dataflow (no model names are hard-coded) and shows:

role	UNETR	Swin UNETR	UNesT
patch embedding	`vit.patch_embedding`	`swinViT.patch_embed`	`nestViT.patch_embed`
transformer encoder	blocks 3, 6, 9, 12 (one token grid)	the four Swin levels (resolution halves, channels double)	the three NesT levels
bottleneck	–	`encoder10`	`encoder10`
decoder	`decoder5 … decoder2`	`decoder5 … decoder1`	`decoder5 … decoder1`
head	`out`	`out`	`out`

The small convolutional branches that only resample a hidden state for its decoder level (UNETR's encoder2..4) are drawn as skip bridges from the transformer level to the decoder instead of as stages of their own. neural-flow inspect MODEL -i INPUT prints the chosen stages and the skip edges; to show the branches too, list them explicitly:

neural-flow render unetr.py:build --layers "re:^vit\.blocks\.(3|6|9|11)$,encoder2,encoder3,decoder5,decoder2,out" -i x.nii.gz

Swin UNETR

Swin UNETR on the same head: the four Swin levels halve the resolution (16³ → 2³) while the decoder climbs back to 64³.

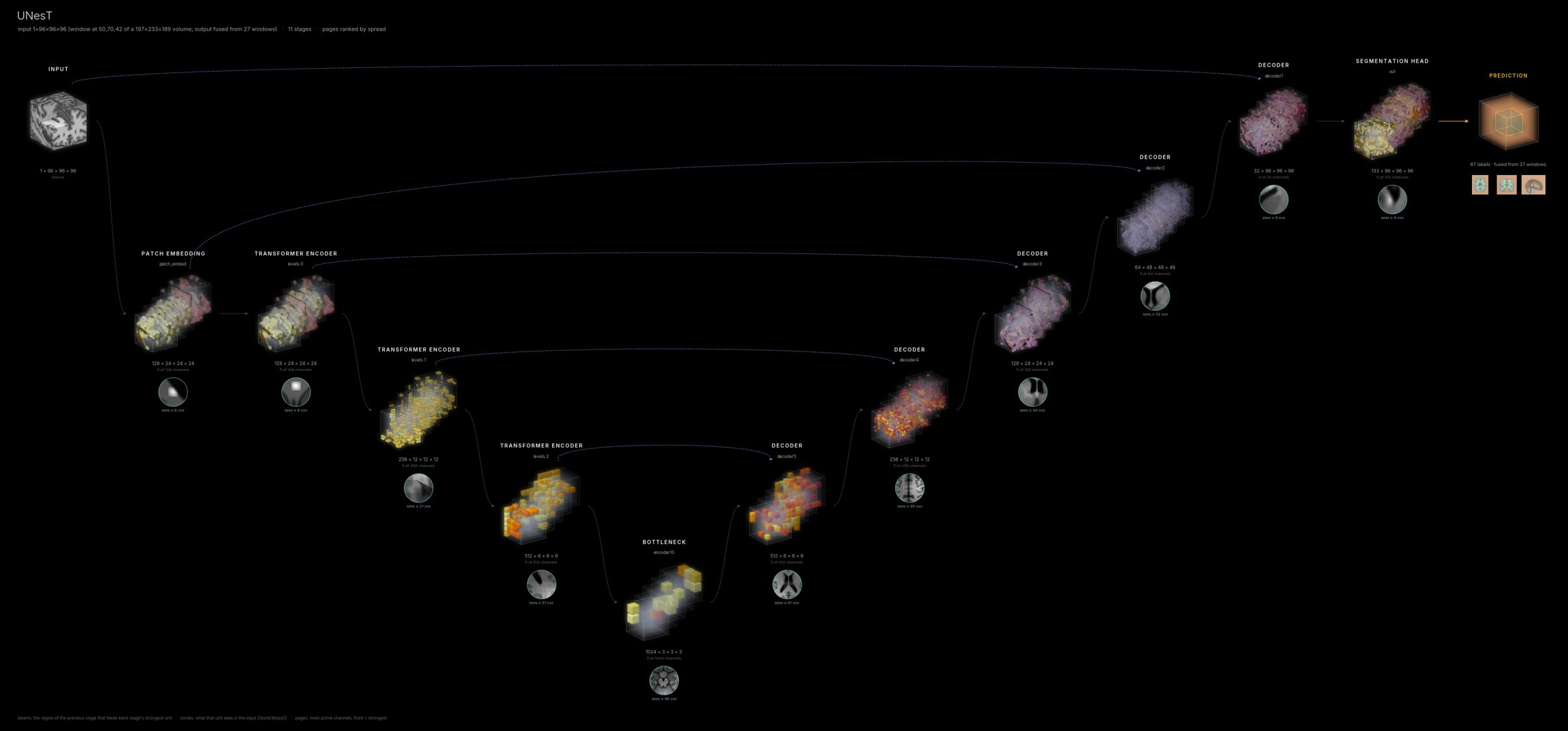

UNesT structure check

Structure check for MASI's UNesT on the MNI152 template (197 × 233 × 189, 27 windows), built from the MONAI bundle's own sources with random weights: the patch embedding, three NesT levels, bottleneck and decoder are found and drawn as a U. The prediction is meaningless without the trained weights; run neural-flow fetch unest and bash tools/test_unest.sh to render it with them.

nnU-Net¶

nnU-Net's U-Nets (PlainConvUNet, ResidualEncoderUNet) are drawn one stage per resolution level, with deep supervision switched off, and trained models load from their results folders with nnU-Net's own preprocessing and sliding-window settings:

neural-flow render totalseg -i sample:ct --sliding-window --style cinematic          # TotalSegmentator, CT
neural-flow render nnunet:/path/to/results_folder -i case.nii.gz --sliding-window    # your model

See nnU-Net and TotalSegmentator.

Whole-volume output (sliding windows)¶

3-D segmentation networks are trained on a fixed window (e.g. 96³) and applied to a whole scan with sliding-window inference: overlapping windows are run one at a time and blended with a Gaussian weight. sliding_window=True shows both sides honestly:

the stages show the one window the network actually processed (centred on the foreground, or at roi_center);
the output card shows the prediction fused from every window over the whole volume, with the traced window outlined.

visualize_model(model, whole_volume, sliding_window=True, roi_size=(96, 96, 96), sw_overlap=0.25,
                voxel_spacing=(1, 1, 1), output_types={"output": "segmentation"})

neural-flow render unest -i T1_mni.nii.gz --sliding-window --style cinematic
neural-flow render my_net.py:Net -i ct.nii.gz --sliding-window --roi 128 128 64 --sw-overlap 0.5

Fusion needs no MONAI (neural_flow.volume3d.sliding_window_infer). For many-class models (UNesT has 133 structures) the fused logits of a whole head would take several GB, so they are accumulated on a coarser grid when they would exceed sw_max_mb (1.5 GB by default); a warning says so.

Movie: 3-D inference, window by window¶

from neural_flow.volume3d import sliding_window_movie

sliding_window_movie(model, whole_volume, (96, 96, 96), "inference.mp4", overlap=0.25, max_windows=16,
                     voxel_spacing=(1, 1, 1), output_types={"output": "segmentation"})

neural-flow movie unest --inference T1_mni.nii.gz --max-windows 16 -o unest_inference.mp4
python examples/transformer_3d.py --movie

Each frame is one window. The stages follow the window through the head (stages, channels and colour scales are fixed across frames, as in every movie), the output card shows the segmentation assembling as windows are fused, and the film strip shows where the window is.

movie_sliding_window_unetr.mp4

Optional: flat 2-D view¶

To draw a volumetric network like a 2-D CNN (for example for a slide that sits next to 2-D models), squash every 3-D stage into a 2-D projection. It is off by default because it hides depth.

visualize_model(model, x, flat_3d=True)          # max projection; flat_3d="mean" for a mean projection

neural-flow render my_unet.py:UNet -i scan.nii.gz --flat-3d

Feature maps, receptive fields and Grad-CAM are projected along the inferior–superior axis; the input and the segmentation are shown as the axial slice through the input's centre of mass, so the anatomy stays legible.

flat 2-D view

Other 3-D options¶

option	what it does
`volume_mode="volume"` (default for features)	translucent voxel blocks, strongest activations solid
`volume_mode="ortho"` / `"montage"` / `"projection"`	orthogonal slices / most active axial slices / max-projections, as 2-D tiles
`volume_style="voxels" \\| "cutaway" \\| "glow"`	how 3-D blocks are rendered
`max_spatial_3d`	largest captured feature volume per axis (default 48; larger ones are downsampled on the device)
`max_input_3d`	largest input volume kept for drawing (default 128)

Performance¶

A 96³ window of UNesT or Swin UNETR takes seconds on a GPU and about a minute on a laptop CPU, including the gradient explanations (explain=False / --no-explain roughly halves that). Sliding-window output costs one forward pass per window: a whole MNI-space head at 96³ with 25 % overlap is 27 windows. Movies re-run the network three times per frame (stage choice, channel ranking, capture), so use max_windows and a GPU for long ones.

References¶

UNETR (Hatamizadeh et al., WACV 2022), Swin UNETR (Hatamizadeh et al., BrainLes 2021; Tang et al., CVPR 2022), UNesT (Yu et al., Medical Image Analysis 2023), NesT (Zhang et al., AAAI 2022), Gaussian sliding-window fusion and nnU-Net (Isensee et al., Nature Methods 2021), TotalSegmentator (Wasserthal et al., Radiology: AI 2023). Full entries: References.
